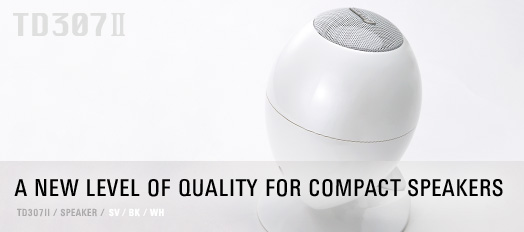

A new level of quality for compact speakers

CONCEPT MOVIE

TD307II/FEATURE

The new age small speaker
Eclipse TD speakers bring the technology used by sound engineers and musical artists to the small speaker. Sound theory, award winning design, technical know-how, carefully chosen material and a precision attention to detail go into achieving a highest sound quality - at an affordable price.

The small speaker with no compromise
Although it is classed as a small speaker system, the TD307II's construction and technology is as superior as our larger models. The new driver unit has been developed to achieve better impulse response and a wider frequency range, vibration resistance has been improved to provide better low-frequency response, and it can be mounted in any direction. You'll experience a speaker that's out of its class.

Design your own sound space The TD307II, available in white, silver and black, suits both stereo use and surround use. The technology-driven egg shape blends with your style, while making a subtle and comfortable design statement.

TD307II/IMAGE


Click for enlarged image

TD307II/SPEC

Product NameSpeaker
ColorSilver,Black,White
Specifications• Unit: Φ6.5cm Full Range
• Frequency Response: 100Hz-25kHz (-10dB)
• Efficiency/Sensitivity: 80dB/W-m
• Input Resistance (Rating/Max.): 12W/24W
• Impedance: 8Ω
Maximum DimensionsW130 x H195 x D176 (mm)
Weight1.5kg
AccessoriesUnit Guard x 1,security wire for fall prevention x 1

TD307II/OPTION

OPTION
316SW
TDA501II
