TD712zMK2/AWARD
 |
5 Star, Speaker Category
What HiFi? Sound and Vision, September 2009
|
|
|
TD712zMK2/FEATURE
In 2004, we released TD712z speaker, the flagship of ECLIPSE TD range.
This became the ultimate standard for our brand.
Analogue speaker design has changed little since it began and
achieving landmark progress presents a considerable challenge. To
develop the original TD712z, we studied and tried new technologies
with countless listening tests.
'There is no limit on the pursuit of the ultimate; tuning each
individual detail brings evolutionary progress.'
Our target for TD712zMK2 was to extend the frontiers of performance
achieved with the original. Because we wanted to offer a wider
frequency response, and improved power handling, we undertook a
fundamental review of all elements and functions. As a result, we
achieved an even better impulse response than the original TD712z,
which we thought would not be feasible at the launch in 2004.
So now, the artistry of music, the thoughts and feelings of artists
themselves, the distinctive sounds of each instrument, the exquisite
harmonies woven from numerous musical notes - you can experience it
all with the new TD712xMK2 like you've never experienced it before.
|
|
|
|

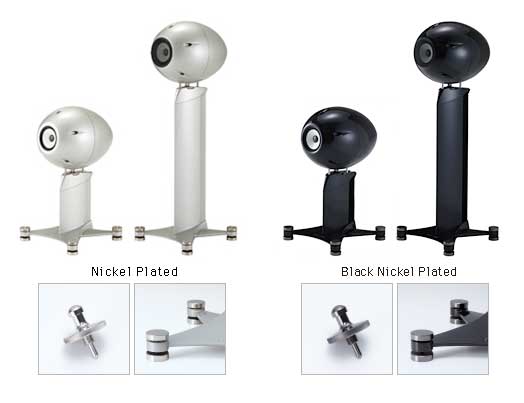

TD712zMK2-S (Short Stand)/SPEC
| Product Name | Speaker |
| Color | Silver, Black |
| Specifications | • Unit | : Φ12cm Full Range |
| • Frequency Response | : 35Hz-26kHz (-10dB) |
| • Efficiency/Sensitivity | : 84dB/W-m |
| • Input Resistance (Rating/Max.) | : 35W/70W |
| • Impedance | : 6Ω |
| • Adjustable Head Angle | : 0°-12° |
| Maximum Dimensions | W347 x H601 x D431 (mm) |
| Weight | 18.0kg |
| Accessories | Unit Guard x 1 |
TD712zMK2 (Regular Stand)/SPEC
| Product Name | Speaker |
| Color | Silver, Black |
| Specifications | • Unit | : Φ12cm Full Range |
| • Frequency Response | : 35Hz-26kHz (-10dB) |
| • Efficiency/Sensitivity | : 84dB/W-m |
| • Input Resistance (Rating/Max.) | : 35W/70W |
| • Impedance | : 6Ω |
| • Adjustable Head Angle | : 0°-12° |
| Maximum Dimensions | W347 x H989 x D431 (mm) |
| Weight | 25.0kg |
| Accessories | Unit Guard x 1 |
|
TD712zMK2/BROCHURES, MANUALS
|
|
|
